FHD-A1 Series

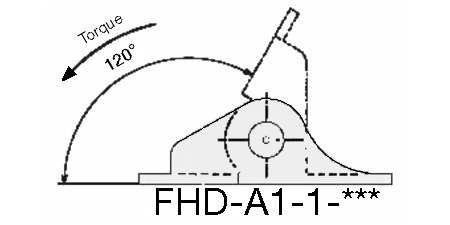

FHD-A1-1-503
| Max torque | 5Nm(50kgfcm) |
|---|---|
| Max reverse torque | 0.6Nm(6kgfcm) |
| Max angle | 120° |
| Operating temperature | -5 ~ 50°C |
| Weight | 410g |
| Main body material | Zinc die-cast (ZDC) |
| Hinge material | Stainless steel (SUS304) |

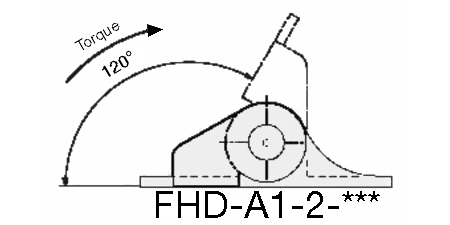

FHD-A1-2-503
| Max torque | 5Nm(50kgfcm) |
|---|---|
| Max reverse torque | 0.6Nm(6kgfcm) |
| Max angle | 120° |
| Operating temperature | -5 ~ 50°C |
| Weight | 410g |
| Main body material | Zinc die-cast (ZDC) |
| Hinge material | Stainless steel (SUS304) |
FHD-A1-1-104
| Max torque | 10Nm(100kgfcm) |
|---|---|
| Max reverse torque | 1Nm(10kgfcm) |
| Max angle | 120° |
| Operating temperature | -5 ~ 50°C |
| Weight | 410g |
| Main body material | Zinc die-cast (ZDC) |
| Hinge material | Stainless steel (SUS304) |
FHD-A1-2-104
| Max torque | 10Nm(100kgfcm) |
|---|---|
| Max reverse torque | 1Nm(10kgfcm) |
| Max angle | 120° |
| Operating temperature | -5 ~ 50°C |
| Weight | 410g |
| Main body material | Zinc die-cast (ZDC) |
| Hinge material | Stainless steel (SUS304) |
