FRN-P2 Series rotary damper

Plastic shock absorber Plastic shock absorber
Aø38mm F4mm K52mm Pø7mm
B42.2mm Gø10mm L5.2mm Q19mm
C10.7mm Hø42mm M10° R5.2mm
D28mm Iø45mm Nø63mm
E12mm J7mm O26mm
Model Rated torque Damping direction Max RPM Max cycle rate Operating temperature Weight Gear

FRN-P2-R202-G1

0.2±0.04Nm(2±0.4kgfcm) Clockwise 50 RPM 10 Cycles/min 0 ~ 50°C 64g G1

FRN-P2-L202-G1

0.2±0.04Nm(2±0.4kgfcm) Counter-Clockwise 50 RPM 10 Cycles/min 0 ~ 50°C 64g G1

FRN-P2-R102-G1

0.1±0.02Nm(1±0.2kgfcm) Clockwise 50 RPM 10 Cycles/min 0 ~ 50°C 64g G1

FRN-P2-L102-G1

0.1±0.02Nm(1±0.2kgfcm) Counter-Clockwise 50 RPM 10 Cycles/min 0 ~ 50°C 64g G1

FRN-P2-R501-G1

0.05±0.01Nm(0.5±0.1kgfcm) Clockwise 50 RPM 10 Cycles/min 0 ~ 50°C 64g G1

FRN-P2-L501-G1

0.05±0.01Nm(0.5±0.1kgfcm) Counter-Clockwise 50 RPM 10 Cycles/min 0 ~ 50°C 64g G1
Plastic shock absorber Plastic shock absorber

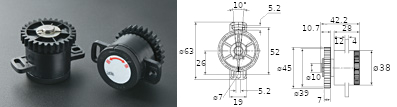

Aø38mm F4mm K52mm Pø7mm
B42.2mm Gø10mm L5.2mm Q19mm
C10.7mm Hø39mm M10° R5.2mm
D28mm Iø46.5mm Nø63mm
E12mm J7mm O26mm
Model Rated torque Damping direction Max RPM Max cycle rate Operating temperature Weight Gear

FRN-P2-R202-G2

0.2±0.04Nm(2±0.4kgfcm) Clockwise 50 RPM 10 Cycles/min 0 ~ 50°C 64g G2

FRN-P2-L202-G2

0.2±0.04Nm(2±0.4kgfcm) Counter-Clockwise 50 RPM 10 Cycles/min 0 ~ 50°C 64g G2

FRN-P2-R102-G2

0.1±0.02Nm(1±0.2kgfcm) Clockwise 50 RPM 10 Cycles/min 0 ~ 50°C 64g G2

FRN-P2-L102-G2

0.1±0.02Nm(1±0.2kgfcm) Counter-Clockwise 50 RPM 10 Cycles/min 0 ~ 50°C 64g G2

FRN-P2-R501-G2

0.05±0.01Nm(0.5±0.1kgfcm) Clockwise 50 RPM 10 Cycles/min 0 ~ 50°C 64g G2

FRN-P2-L501-G2

0.05±0.01Nm(0.5±0.1kgfcm) Counter-Clockwise 50 RPM 10 Cycles/min 0 ~ 50°C 64g G2
