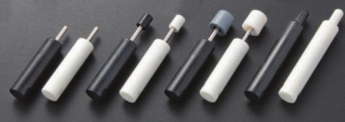

FPD-1012 Shock Absorbers

Model Max Absorbtion energy Recovering power Speed range Color Cap Stroke Weight Main unit material Operating temperature

FPD-1012A1-SW

Plastic shock absorber
0.5J(0.05kgfm) 3N(0.3kgf) 0.5m/s or lower White None 15/32"(12mm) 4.5g Resin 50±10Nm (500±100gfcm)

FPD-1012A1-CW

Plastic shock absorber
0.5J(0.05kgfm) 3N(0.3kgf) 0.5m/s or lower White Standard cap 15/32"(12mm) 5.0g Resin 50±10Nm (500±100gfcm)

FPD-1012A1-RW

Plastic shock absorber
0.5J(0.05kgfm) 3N(0.3kgf) 0.5m/s or lower White Elastomer cap 7/16"(11mm) 5.7g Resin 50±10Nm (500±100gfcm)

FPD-1012A1-DW

Plastic shock absorber
0.5J(0.05kgfm) 3N(0.3kgf) 0.5m/s or lower White Eccentric angle cap 15/32"(12mm) 6.0g Resin 50±10Nm (500±100gfcm)

FPD-1012A1-SB

Plastic shock absorber
0.5J(0.05kgfm) 3N(0.3kgf) 0.5m/s or lower Black None 15/32"(12mm) 4.5g Resin 50±10Nm (500±100gfcm)

FPD-1012A1-CB

Plastic shock absorber
0.5J(0.05kgfm) 3N(0.3kgf) 0.5m/s or lower Black Standard cap 15/32"(12mm) 5.0g Resin 50±10Nm (500±100gfcm)

FPD-1012A1-RB

Plastic shock absorber
0.5J(0.05kgfm) 3N(0.3kgf) 0.5m/s or lower Black Elastomer cap 7/16"(11mm) 5.7g Resin 50±10Nm (500±100gfcm)

FPD-1012A1-DB

Plastic shock absorber
0.5J(0.05kgfm) 3N(0.3kgf) 0.5m/s or lower Black Eccentric angle cap 15/32"(12mm) 6.0g Resin 50±10Nm (500±100gfcm)
Model Max Absorbtion energy Recovering power Speed range Color Cap Stroke Weight Main unit material Operating temperature

FPD-1012A3-SW

Plastic shock absorber
0.8J(0.08kgfm) 3N(0.3kgf) 0.5m/s or lower White None 15/32"(12mm) 4.5g Resin 50±10Nm (500±100gfcm)

FPD-1012A3-CW

Plastic shock absorber
0.8J(0.08kgfm) 3N(0.3kgf) 0.5m/s or lower White Standard cap 15/32"(12mm) 5.0g Resin 50±10Nm (500±100gfcm)

FPD-1012A3-RW

Plastic shock absorber
0.8J(0.08kgfm) 3N(0.3kgf) 0.5m/s or lower White Elastomer cap 7/16"(11mm) 5.7g Resin 50±10Nm (500±100gfcm)

FPD-1012A3-DW

Plastic shock absorber
0.8J(0.08kgfm) 3N(0.3kgf) 0.5m/s or lower White Eccentric angle cap 15/32"(12mm) 6.0g Resin 50±10Nm (500±100gfcm)

FPD-1012A3-SB

Plastic shock absorber
0.8J(0.08kgfm) 3N(0.3kgf) 0.5m/s or lower Black None 15/32"(12mm) 4.5g Resin 50±10Nm (500±100gfcm)

FPD-1012A3-CB

Plastic shock absorber
0.8J(0.08kgfm) 3N(0.3kgf) 0.5m/s or lower Black Standard cap 15/32"(12mm) 5.0g Resin 50±10Nm (500±100gfcm)

FPD-1012A3-RB

Plastic shock absorber
0.8J(0.08kgfm) 3N(0.3kgf) 0.5m/s or lower Black Elastomer cap 7/16"(11mm) 5.7g Resin 50±10Nm (500±100gfcm)

FPD-1012A3-DB

Plastic shock absorber
0.8J(0.08kgfm) 3N(0.3kgf) 0.5m/s or lower Black Eccentric angle cap 15/32"(12mm) 6.0g Resin 50±10Nm (500±100gfcm)
Model Max Absorbtion energy Recovering power Speed range Color Cap Stroke Weight Main unit material Operating temperature

FPD-1012A5-SW

Plastic shock absorber
1.0J(0.10kgfm) 3N(0.3kgf) 0.5m/s or lower White None 15/32"(12mm) 4.5g Resin 50±10Nm (500±100gfcm)

FPD-1012A5-CW

Plastic shock absorber
1.0J(0.10kgfm) 3N(0.3kgf) 0.5m/s or lower White Standard cap 15/32"(12mm) 5.0g Resin 50±10Nm (500±100gfcm)

FPD-1012A5-RW

Plastic shock absorber
1.0J(0.10kgfm) 3N(0.3kgf) 0.5m/s or lower White Elastomer cap 7/16"(11mm) 5.7g Resin 50±10Nm (500±100gfcm)

FPD-1012A5-DW

Plastic shock absorber
1.0J(0.10kgfm) 3N(0.3kgf) 0.5m/s or lower White Eccentric angle cap 15/32"(12mm) 6.0g Resin 50±10Nm (500±100gfcm)

FPD-1012A5-SB

Plastic shock absorber
1.0J(0.10kgfm) 3N(0.3kgf) 0.5m/s or lower Black None 15/32"(12mm) 4.5g Resin 50±10Nm (500±100gfcm)

FPD-1012A5-CB

Plastic shock absorber
1.0J(0.10kgfm) 3N(0.3kgf) 0.5m/s or lower Black Standard cap 15/32"(12mm) 5.0g Resin 50±10Nm (500±100gfcm)

FPD-1012A5-RB

Plastic shock absorber
1.0J(0.10kgfm) 3N(0.3kgf) 0.5m/s or lower Black Elastomer cap 7/16"(11mm) 5.7g Resin 50±10Nm (500±100gfcm)

FPD-1012A5-DB

Plastic shock absorber
1.0J(0.10kgfm) 3N(0.3kgf) 0.5m/s or lower Black Eccentric angle cap 15/32"(12mm) 6.0g Resin 50±10Nm (500±100gfcm)
