FRT-G2

Rotary Damper

ftr-g2 rotary damper
Bansbach rotary dampers and dashpots are used to dampen drives, control speed, and many other applications. Our rotational viscous dampers are maintenance free and the most durable units on the market. Bansbach silicone oil viscous dampers are available in either fixed rate or adjustable models. On adjustable rotary dampers adjustment is made with an integrated set screw. The damping direction of the rotary dampers with continuous rotation can be clockwise, counter clockwise, or in both directions. In rotary dampers with continuous rotation, a fluid damping is produced by the shearing or braking force of silicon fluids resistance between the surfaces of a rotor and a stator. The damping moment is determined by the viscosity of the fluid and the size of the orifice or gap. The damping characteristics can be customized by changing the viscosity of the silicon fluid or by changing the structure of the rotor and stator. Rotary dampers life-cycles are typically in excess of 50,000 cycles. The service life may be significantly higher or lower, depending on the application. After extended life cycles the dampers still produce over approx. 80% of their original damping moment.
Specifications
Model Rated torque Max. rotation speed Max. cycle rate Operating temperature Weight Body and cap material Rotating shaft material Gear material Oil type
FRT-G2-200(G*) (2.0±0.7)X10-3Nm (20±7gfcm) 50rpm 10 cycles/min 0~50°C 0.6g (with gear: G1:0.8g G2:1.0g G3:0.9g) Polycarbonate Polyacetal Polyacetal Silicone oil
FRT-G2-300(G*) (3.0±0.8)X10-3Nm (30±8gfcm)
FRT-G2-450(G*) (4.5±1)X10-3Nm (45±10gfcm)
FRT-G2-600(G*) (6.0±1.2)X10-3Nm (60±12gfcm)
FRT-G2-101(G*) (10±2)X10-3Nm (100±20gfcm)
Gear Specifications
Model G1 G2 G3
Type Standard spur gear Profile shifted spur gear Standard spur gear
Tooth profile Involute
Module 0.5 1.0 0.8
Pressure angle 20°
Number of teeth 14 10 11
Pitch circle diameter Ø7 Ø10 Ø8.8
Addendum modification coefficient --- +0.375 ---
Damping characteristics

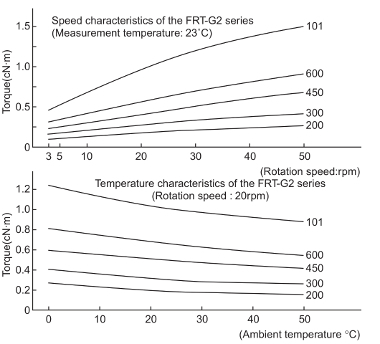

ftr-g2 damping characteristics 1. Speed characteristics:
A rotary damper's torque varies according to the rotation speed. In general, as shown in the graph to the right, the torque increases as the rotation speed increases, and the torque decreases as the rotation speed decreases. In addition, please note that the starting torque slightly differs from the rated torque.
2. Temperature characteristics:
A rotary damper's torque varies according to the ambient temperature. In addition, as shown in the graph to the right, the torque decreases as the ambient temperature increases, and the torque increases as the ambient temperature decreases. This is because the viscosity of the silicone oil inside the damper varies according to the temperature. When the temperature returns to normal, the torque will return to normal as well.
